Analog Clock

This example renders an analog clock that updates in real time.

It’s a more complex drawing than other examples and uses a variety of canvas functions, as well as:

Effects

Because the render function runs in the Effect monad, it’s able to call the nowTime function from Effect.Now.

Scaling

The example uses a custom view box in AppSpec:

  , viewBox: { x: 0.0, y: 0.0, width: 1100.0, height: 1100.0 }

In render, the clock is defined by a circle in the middle of the view box, and the position and radius are scaled to the canvas with the to scaling function:

clock =
  { x: drawing.width / 2.0
  , y: drawing.height / 2.0
  , r: 500.0
  } `to` canvas

Some other values are scaled as well, like the thicknesses of the clock’s hands:

-- hour and minute hands
Canvas.setLineWidth context $ 16.0 `lengthTo` canvas

-- second hand
Canvas.setLineWidth context $ 7.0 `lengthTo` canvas

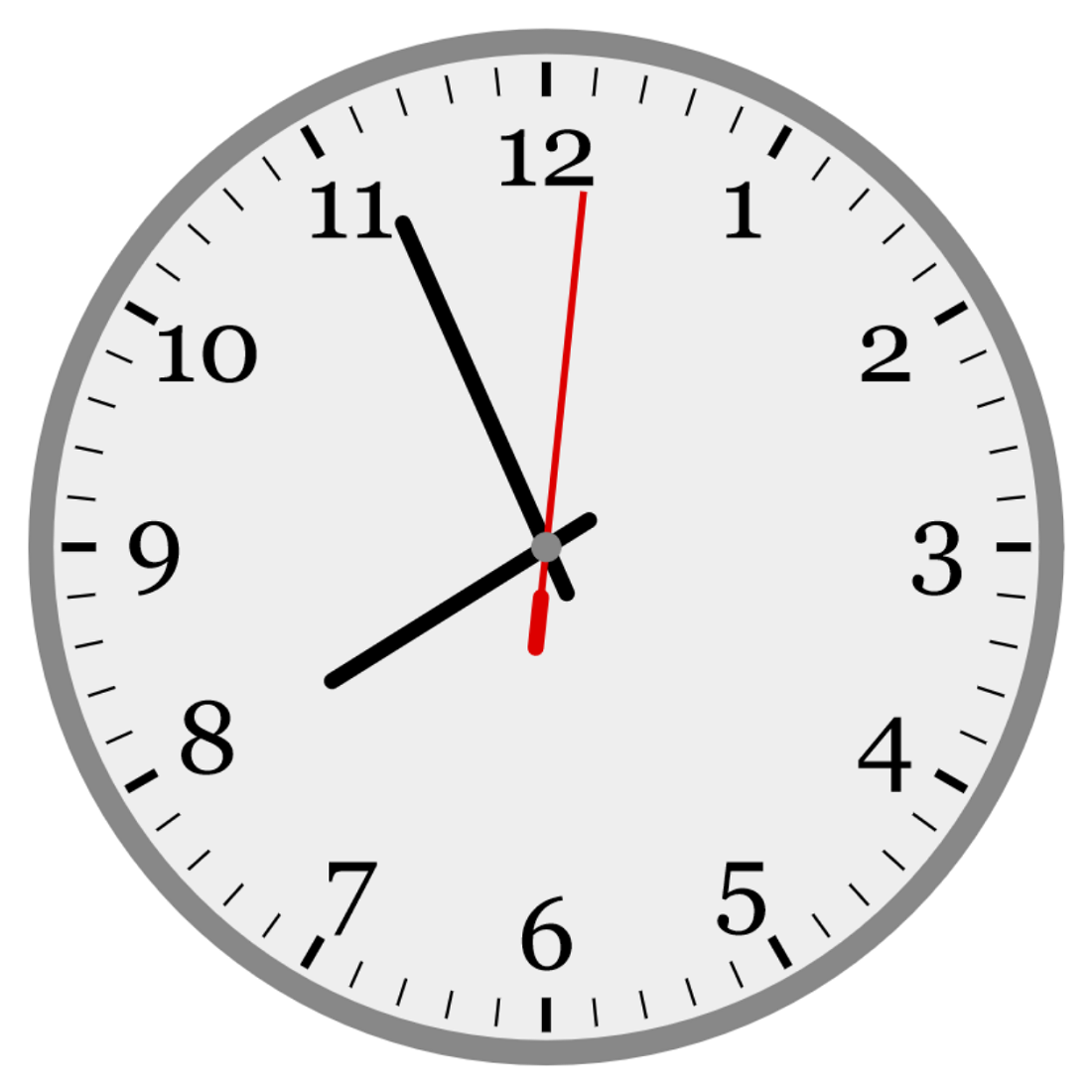

Sample output

See this example in action
