Paint App

This example shows how to use a Gesso component inside a Halogen application to make a small drawing app. It uses Halogen queries to communicate with the parent component.

Structure

Root is the main component. It contains the Gesso component (Grid) and four button components (ColorButton). It keeps track of the color of the pixels in the drawing and the order that they changed colors, in order to provide undo and redo features.

ColorButton renders a button element for selecting a color to draw with. It emits an Output when clicked.

Grid wraps the Gesso canvas. It uses this AppSpec:

  , behavior: GApp.defaultBehavior
      { render = renderApp
      , output = extractOutput
      , input = convertState
      , interactions
          { mouse = [ highlightCell, clearHighlight, mouseDown, mouseUp ]
          }
      }

When the canvas state changes, extractOutput is called with a Gesso.State.Compare record. If this returns a Just value, Gesso automatically calls Halogen.raise to send output to Root.

When Root sends a query to Grid with Halogen.tell, Grid reacts to the query with convertState.

Layout

This example uses a view box from 0 to 32 in both axes to simplify coloring individual squares.

It also uses a fixed, 600 by 600 pixel size.

Scaling operators

This example uses the operator aliases for scaling functions:

x = floor $ point.x -~> drawing

y = floor $ point.y |~> drawing

Canvas.setLineWidth context $ 0.05 /~> canvas

Canvas.fillRect context $
  { x: toNumber x, y: toNumber y, width: 1.0, height: 1.0 } *~> canvas

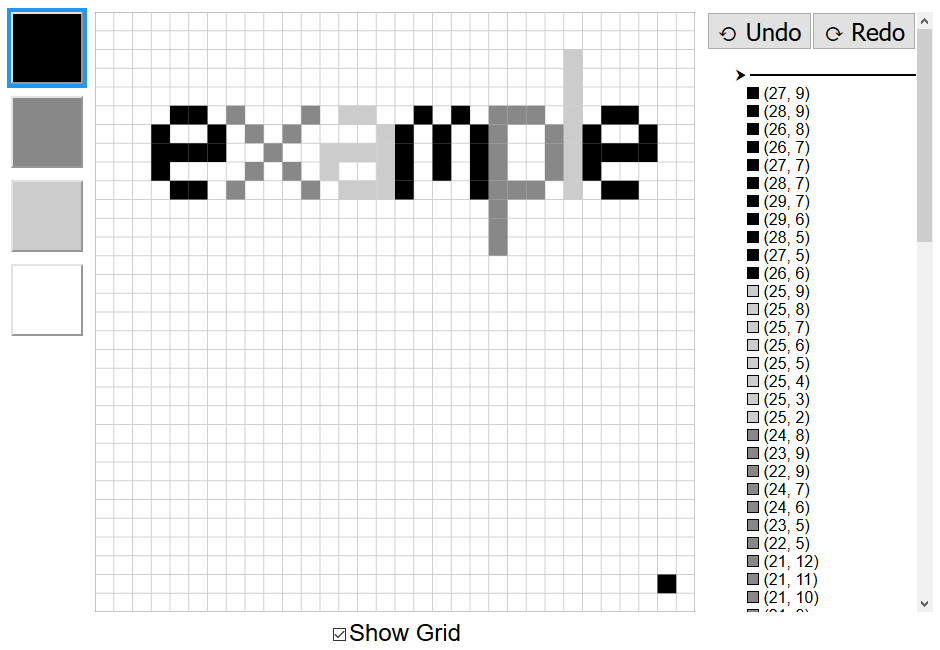

Output

See this example in action
